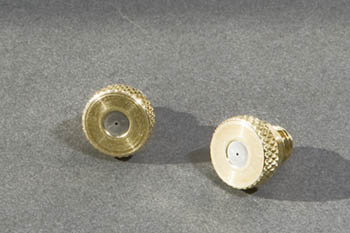

Our industry-standard mist nozzles are precision engineered to produce a high percentage of smaller than 50-micron sized droplets at higher pressure ranges in a cone-shaped spray. All stainless steel orifices and pins. Bodies in brass, stainless steel, or nickel-plated brass. Made in the USA.
All of our misting nozzles are designed for an extremely high emission velocity with a low flow rate. This allows for the atomization of liquids into aerosol particles of micron size (<50 micron size) that are dispersed evenly into the environment throughout the working pressure range. The nozzles' ability for better atomization effectively evaporates their output even in climates with fairly high relative humidity.
Recommended flow rates, pressure, and uses for different nozzle sizes
| Orifice | Flow | Min. Pressure | Application |
| .006″ | Very Low | 500 psi | Fans in areas with high humidity. |
| .008″ | Low | 140 psi | Indoor humidification, outdoor cooling. Cooling people, indoors or out. |
| .012″ | 50 psi | Cooling people in areas with extreme heat and low humidity or where the nozzles are placed high above the area to be cooled. | |
| .016″ | High | Outdoor applications | |
| .020″ | Very High | Special Effects |
|
NOZZLE IDENTIFICATION AND FLOW RATES
|
||||||||||||
| COLOR | ORIFICE | Kg/cm | 7 | 10 | 14 | 25 | 35 | 45 | 56 | 70 | 105 | |
| O-RING | DIA | PSI | 100 | 150 | 200 | 350 | 500 | 650 | 800 | 1000 | 1500 | |
| 0.15mm | LPH | 1.4 | 1.6 | 2 | 2.20 | 2.60 | 2.80 | 3.03 | 4.60 | |||
| 0.006″ | GPH | 0.37 | 0.42 | 0.51 | 0.58 | 0.70 | 0.75 | 0.80 | 1.20 | |||
| 0.2mm | LPH | 1.7 | 2 | 2.80 | 2.90 | 3.40 | 4 | 4.20 | 4.90 | |||
| 0.008″ | GPH | 0.45 | 0.52 | 0.75 | 0.77 | 0.90 | 1.05 | 1.10 | 1.30 | |||
| 0.3mm | LPH | 2.20 | 2.70 | 2.90 | 3.79 | 4.10 | 4.70 | 5.30 | 5.60 | 7 | ||
|
0.012″
|
GPH | 0.59 | 0.72 | 0.77 | 1 | 1.08 | 1.25 | 1.40 | 1.60 | 1.65 | ||
| 0.4mm | LPH | 3.10 | 4.20 | 5.10 | 6.50 | 7 | 7.58 | 8.40 | 8.90 | 9.90 | ||
| 0.016″ | GPH | 0.82 | 1.10 | 1.35 | 1.70 | 1.85 | 2 | 2.20 | 2.40 | 2.60 | ||
| 0.5mm | LPH | 4.20 | 5 | 5.30 | 6.80 | 8 | 9 | 9.50 | 9.90 | 10 | ||
| 0.020″ | GPH | 1.10 | 1.30 | 1.40 | 1.80 | 2.10 | 2.40 | 2.50 | 2.60 | 2.70 | ||
Spray Angle:
|
Minimum Pressure Required:
|
