Nozzle Extensions and Nozzle Clusters

Nozzle Clusters

Nozzle clusters enable putting five nozzles on one mist nozzle riser, which makes it possible to significantly increase the volume of mist. KJ Diversified makes “cluster rings”, such as the one in the photo, to mount four clusters, for a total of 20 nozzles, on one ring.

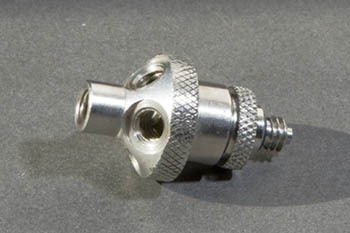

Misting Nozzle Cluster

Stainless steel mist nozzle cluster, threaded for 10/24 or 12/24.

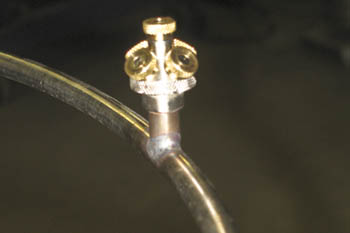

Nozzle Cluster on Mist Cluster Ring

Stainless steel mist nozzle cluster mounted on a cluster ring with five nozzles installed.

Nozzle Extensions

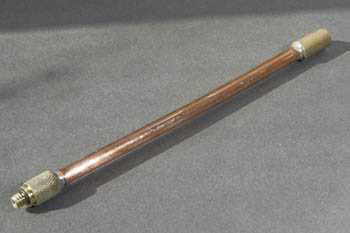

Mist Nozzle Extension

Nozzle extension made from copper tubing and stainless steel ends. Ends are threaded for 10/24 or 12/24.

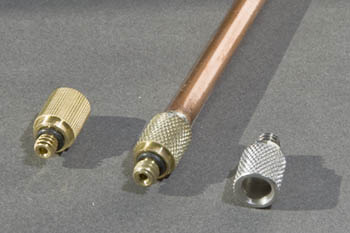

Misting Nozzle Extension Male Ends

Male end pieces for mist nozzle extensions. Ends are threaded for 10/24 or 12/24.

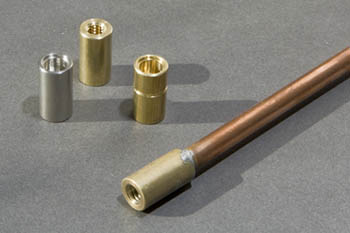

Misting Nozzle Extension Female Ends

Female end pieces for mist nozzle extensions. Ends are threaded for 10/24 or 12/24.
