Stainless Misting Tees
Stainless Misting Tees are stainless steel compression fittings that have had mist nozzle risers welded to them. This allows custom positioning of your mist nozzles. Simply cut your misting line where a nozzle is needed, then add one of these misting tees to add a mist nozzle at that point. Compression fittings make it easy to connect to standard sized stainless or copper tubing.
Most are for 3/8th-inch tubing (O.D.) and 1/4-inch tubing (O.D.) and work best with stainless steel mist line, stainless tubing, or copper tubing. These fittings are rated to 3000 PSI. Nozzle weld risers are available in 10/24 and 12/24 nozzle thread sizes.
| Stainless Misting Tee Sizes |
3/8th-inch line fitting with 1/2-inch or 1 1/2-inch mist nozzle riser 1/4-inch line fitting with 1/2-inch or 1 1/2-inch mist nozzle riser |
| Rated PSI | 3,000 PSI |
| Nozzle Thread Size | 10/24, 12/24 |

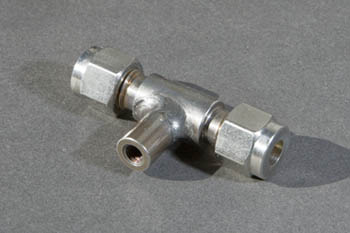

Stainless misting line tee for 1/4-inch Line, 1/2-inch tall nozzle riser
Available Sizes
Thread: 10/24 or 12/24

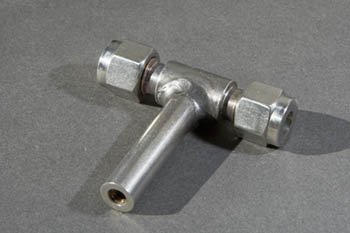

Stainless misting line tee for 1/4-inch Line, 1 1/2-inch tall nozzle riser
Available Sizes
Thread: 10/24 or 12/24

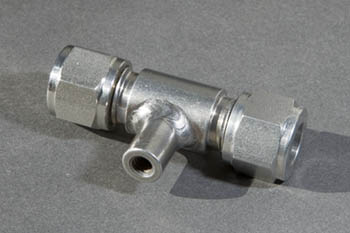

Stainless misting line tee for 3/8-inch Line, 1/2-inch tall nozzle riser
Available Sizes
Thread: 10/24 or 12/24

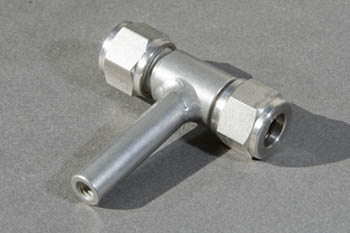

Stainless misting line tee for 3/8-inch Line, 1 1/2-inch tall nozzle riser
Available Sizes
Thread: 10/24 or 12/24
